產品介紹
插頭&線材零組件類

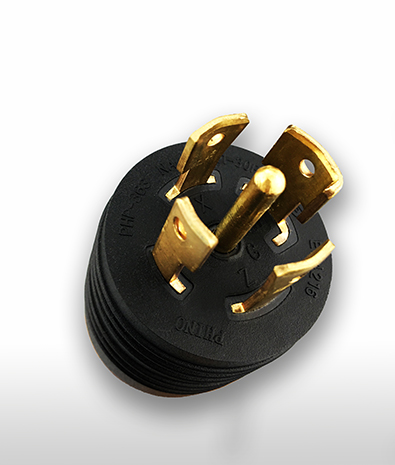

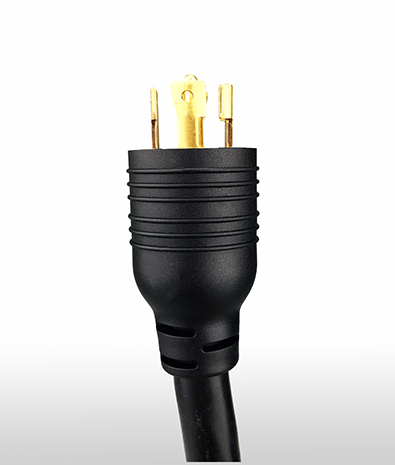

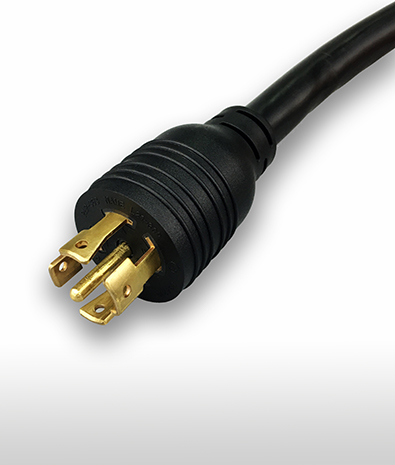

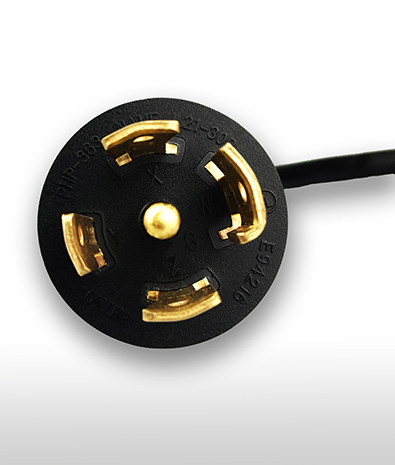

美國 NEMA L21-30P 鎖扣式 AC插頭 5PIN 接地, 30A 120/208V
產品型號
PHP-363額定電壓
120/208V額定電流
30A顏色
黑色或可依照需求提供客制化產品材質
PVC最小訂購量
500PCS供給能力
10000PCS/MonthCertificate
產品圖面
.png)
規格說明
| 適用電線 | SJT AWG 10/5C 12/5C |
| SJTW AWG 10/5C 12/5C | |
| SJTO AWG 10/5C 12/5C | |
| SJTOW AWG 10/5C 12/5C | |
| SJTOO AWG 10/5C 12/5C | |
| SJTOOW AWG 10/5C 12/5C | |
| ST AWG 10/5C 12/5C | |
| STW AWG 10/5C 12/5C | |
| STO AWG 10/5C 12/5C | |
| STOW AWG 10/5C 12/5C | |
| STOO AWG 10/5C 12/5C | |
| STOOW AWG 10/5C 12/5C | |
| SOOW AWG 10/5C 12/5C | |
| 參考標准 | UL 817 , NEMA L21~30P |
| RoHS 符合 | 是 |
| REACH 符合 | 是 |
